Can Mansard Roofs have Solar Panels in Edinburgh?

Walk through Edinburgh's New Town or parts of Stockbridge, and you'll spot those elegant French-inspired roofs with their distinctive steep lower slopes and gentler upper sections. Mansard roofs bring a touch of continental sophistication to our Georgian and Victorian properties, but if you're considering solar panels, you might be wondering whether these architectural features can work with modern renewable technology.

Quick take: Mansard roofs can absolutely accommodate solar panels, though the near-vertical lower slopes won't be any use for installation. Your focus needs to be on the upper, flatter section at the top. It's not quite as straightforward as a simple pitched roof, but with proper mounting systems and careful planning, Edinburgh homeowners with mansard roofs can benefit from solar panel technology whilst respecting their property's historic character.

What is a Mansard Roof?

A mansard roof, occasionally called a French roof or curb roof, features four sides with two different slopes on each. The lower slope drops steeply, sometimes almost vertically, whilst the upper slope sits at a much gentler angle on top. This dual-pitch arrangement creates that characteristic boxy silhouette you'll recognise on period properties throughout Morningside and the southern edges of the New Town.

The design dates back to 16th-century France, gaining prominence through architect François Mansart during the 1600s. For Edinburgh homeowners, these roofs appear most frequently on Victorian conversions and Edwardian properties, particularly within our conservation areas where architectural consistency matters.

What makes mansard roofs particularly clever is their space efficiency. Those steep lower sections typically house dormer windows, flooding what would otherwise be a dim attic with natural light. The design essentially adds an extra living floor without pushing the building's height beyond the upper roofline. That upper portion is often so shallow it's barely noticeable from street level, and it's precisely this hidden flat or nearly flat top section that becomes relevant when you're weighing up solar panel installation.

Key Features That Make a Roof "Mansard"

Not every two-slope roof counts as a mansard. Several architectural characteristics define this particular style, and recognising these will help you determine whether your Edinburgh property has one.

Dual slopes wrapping all four sides form the essential characteristic. Unlike a gable roof, which features just one slope per side, every face of a mansard roof displays that two-part slope arrangement: a steep lower section paired with a gentle upper section. This all-round design distinguishes it from other roof types.

The steep lower pitch drops sharply, frequently approaching vertical. This near-vertical section maximises attic volume and usually incorporates dormer windows to bring daylight into the space. It's this dramatic pitch that creates the classic continental appearance you'll see on period properties across East Edinburgh and the established neighbourhoods radiating from the city centre.

The shallow upper pitch sits atop those steep walls at a low angle, sometimes nearly flat. Often, this upper section isn't visible from ground level because of its minimal slope. This top portion serves as the main weather roof and might be a compact flat deck or a low-angled hip.

Dormer windows commonly project from the steep lower section, boosting natural light and airflow in the attic living space. These windows are a defining visual element of mansard architecture and can be styled in various ways: gabled, arched, or flat-topped.

Material variety is typical. Historically, slate tiles dominated Edinburgh's roofscape, but contemporary mansard roofs might use clay tiles, composite materials, metal panels, or modern alternatives. The choice influences durability and appearance, but the defining shape remains consistent regardless of the covering material.

If your Edinburgh property features four sides with two distinct slopes on each, steep lower and shallow upper, you've almost certainly got a mansard roof.

How a Mansard Roof Affects Solar Panel Design and Placement

Here's what you need to know: if you're thinking about solar panels for your mansard-roofed Edinburgh home, the unique geometry directly shapes where and how panels can be fitted. Those vertical sides and relatively flat top create both obstacles and possibilities.

The steep lower slopes aren't practical for solar panel installation. Fitting panels on the near-vertical sides isn't recommended. Solar panels generate the most electricity when they face the sun at roughly a 90-degree angle. A vertical panel only catches optimal sun when it sits very low on the horizon, which happens briefly during winter and hardly at all in summer. Studies indicate that panels on vertical surfaces might underperform by 60-80% compared to properly angled installations.

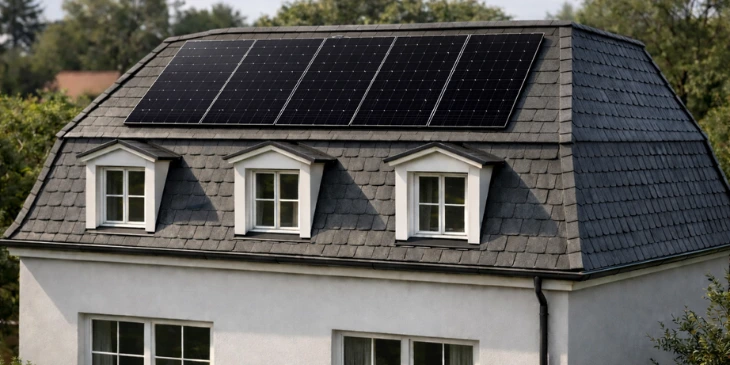

The workable area for solar is the upper, low-slope section. The top of a mansard roof functions essentially like a flat roof and can host solar panels more effectively. However, if that top section is completely flat, mounting panels flush would leave them lying horizontal, which isn't ideal. Horizontal panels can experience 10-20% output loss compared to tilted panels and collect more dirt, needing more frequent maintenance.

Best practice involves angling solar panels towards the sun. This typically means using racking systems that tilt the panels upward. Installers might employ triangular mounting racks so panels sit at 30-40 degrees facing south. For Edinburgh's latitude of roughly 56°N, this angle maximises annual energy generation.

One fortunate aspect is that the flat top is often bordered by those steep sides, functioning like a parapet. This means panels may be hidden from view at ground level. You gain solar energy without dramatically altering your property's historic appearance when viewed from the street, particularly valuable in conservation areas across Stockbridge-Canonmills and the Old Town.

The size and orientation of the top section limits placement options. On a compact terraced house, the flat portion might be relatively small. Also, mansard tops typically feature a four-sided hip, meaning only the south-facing portion will receive good sun exposure throughout the day. Each Edinburgh property differs, so a professional solar installer should evaluate which sections of your roof get adequate sun exposure.

Best Solar Solutions for Mansard Roofs In Edinburgh

Despite the constraints, there are several effective strategies to successfully install solar on a mansard-roofed Edinburgh home.

Make use of the upper low-slope section. The most straightforward approach is positioning solar panels on the upper, gentle slope or flat portion of the mansard roof. If your upper roof features around 30-35 degrees of pitch facing southward, you might even mount panels flush because this angle is nearly optimal for our latitude.

Tilt racking systems for flat sections. For roofs with a flat deck or near-flat top, specialist mounting racks angle the panels up from the horizontal surface. These can be fixed to the roof structure or ballasted if penetrating the roof raises concerns. For Edinburgh's location at 56°N, a tilt of around 30-35 degrees facing south captures excellent solar energy throughout the year, even during our shorter winter days.

High-efficiency panels for limited space. Because the available area may be smaller, think about higher-efficiency solar panels which generate more watts per square metre. Modern monocrystalline panels can reach efficiencies of 20-22%, meaning even with fewer panels, you still produce useful electricity.

Structural considerations matter. Make sure your roof can handle the weight of solar panels plus mounting hardware. Panels themselves aren't particularly heavy (roughly 18-20kg each), but a cluster plus racks should be reviewed by your installer, especially for older Edinburgh properties where original timber structures may have aged.

Alternative solutions if the roof isn't workable. If the mansard roof's top is too compact or heavily shaded by neighbouring buildings or trees, think about ground-mounted solar panels on your property or a solar pergola. These can be oriented at the perfect angle without involving the roof structure.

Combining with battery storage. Given that a mansard roof installation might be smaller than ideal, pairing your system with battery storage makes excellent sense. Batteries let you store excess energy generated during Edinburgh's long summer days and use it during evenings or overcast periods, maximising value from your limited panel array.

With thoughtful planning, even a characterful old mansard-roofed house in Leith or South Edinburgh can be fitted with contemporary solar technology.

Final Thoughts on Mansard Roofs and Solar

Mansard roofs represent a fusion of architectural elegance and practical space creation. They give Edinburgh homeowners a distinctive façade and extra living space, though with added complexity when it comes to solar installation.

If you own a mansard-roofed home and you're weighing up solar panels, remember that the steep sides won't work for solar, but the flat or gentle top section can. You'll need to expect some limitations: you might install a smaller system or need custom mounting solutions, but the benefits remain worthwhile.

Professional input is vital. Work with experienced solar installers who understand Edinburgh's housing stock and can assess your specific roof geometry, angle to the sun, and structural capacity. Even a modest solar array can cut energy bills considerably whilst preserving the mansard's historic character visible from the street, something particularly valuable in conservation areas across the New Town and West Edinburgh.

With proper maintenance, a mansard roof can protect a home for decades, and with smart planning, it can also host solar technology to power that home well into the future. If you're ready to explore solar options for your mansard-roofed Edinburgh property, get in touch with our team. We'll assess your specific situation and design a system that works with your roof's unique characteristics.

Mansard Roofs Solar FAQs

Are mansard roofs good for solar panels?

Generally, mansard roofs aren't ideal for solar panels compared to simple pitched roofs. The extreme dual-angle design means the only suitable place for panels is the flat or gentle-sloped top surface. The steep lower walls face almost vertically, limiting how much electricity your system can generate. That said, mansard roofs can accommodate solar with the right approach.

Can I install solar panels on the steep sides of a mansard roof?

It's not recommended. Solar professionals advise against placing panels on the vertical faces because the angle is so extreme that panels would capture minimal sunlight except at dawn or dusk. The recommended approach is installing panels on the upper low-slope section, where they can be tilted appropriately towards the sun.

How should solar panels be mounted on a mansard roof for best results?

The best practice is mounting panels on the top flat portion using angled racks to tilt them towards the sun. For Edinburgh's latitude of around 56°N, a tilt of around 30-35 degrees facing south is generally optimal. This might involve a ballasted racking system or a fixed tilted frame attached to the roof structure.

Is the upper slope of a mansard roof suitable for solar?

Yes, especially if one side faces south. If a mansard's upper section has around 30-35 degrees of pitch, it's close to ideal for panel installation in Edinburgh. The key is that the upper slope must face the sun. North-facing upper slopes won't help much.

What if my mansard roof doesn't have much flat area on top?

If the flat top is very compact or occupied by equipment, think about supplemental options. You could install a smaller array on the roof and augment it with ground-mounted panels elsewhere on your property. A mansard home in Morningside or Bruntsfield can still benefit from solar power through these creative solutions.

Will adding solar panels damage my mansard roof or affect its appearance?

When done properly by qualified installers, solar panel installation shouldn't damage your roof. Panels placed on the upper flat portion are often hidden behind the parapet-like edges, so they won't be visible from ground level. This means your home's appearance, especially the characteristic mansard profile and dormers, remains largely unchanged. For more information, visit our about page.

Are there any Edinburgh-specific considerations for mansard roof solar installations?

Edinburgh's Victorian and Edwardian housing stock means many mansard roofs sit within conservation areas or the UNESCO World Heritage Site. If your property is in a conservation area or the Old Town, you may need planning permission. Panels on the hidden upper section often satisfy planners because they're not visible from street level, helping to preserve the aesthetic appeal of Edinburgh's historic streetscapes.
